High Pin Count Sockets for BGA/LGA Multi-Chip Modules, Chiplet & Multimedia Processors
click on an image to enlarge.
RTI designs custom high pin count test sockets for failure analysis and power testing of AI, telecommunications, datacom devices, multimedia processors, and other CPU intensive end-use applications.
High pin count test sockets are a dedicated solution featuring precision manufacturing and precise ball alignment to maintain test point accuracy.

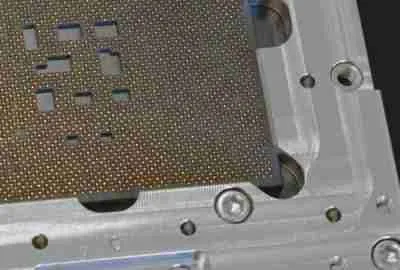

Closeup of custom milled relief cutouts for SMT components on the DUT

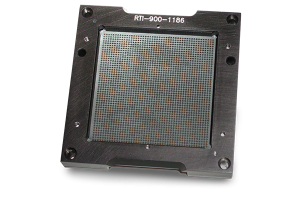

What is unusual about this BGA test socket is the non-floating base. Typical high pin count BGA sockets use a floating base due to the contact force applied to plastic material. This socket features a 3-piece design in stainless steel to withstand the contact force in a non-floating base. Learn more about floating and non-floating bases here.
